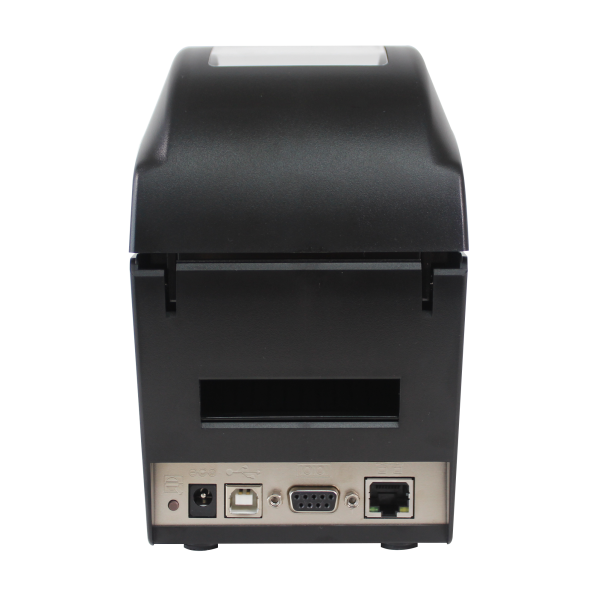

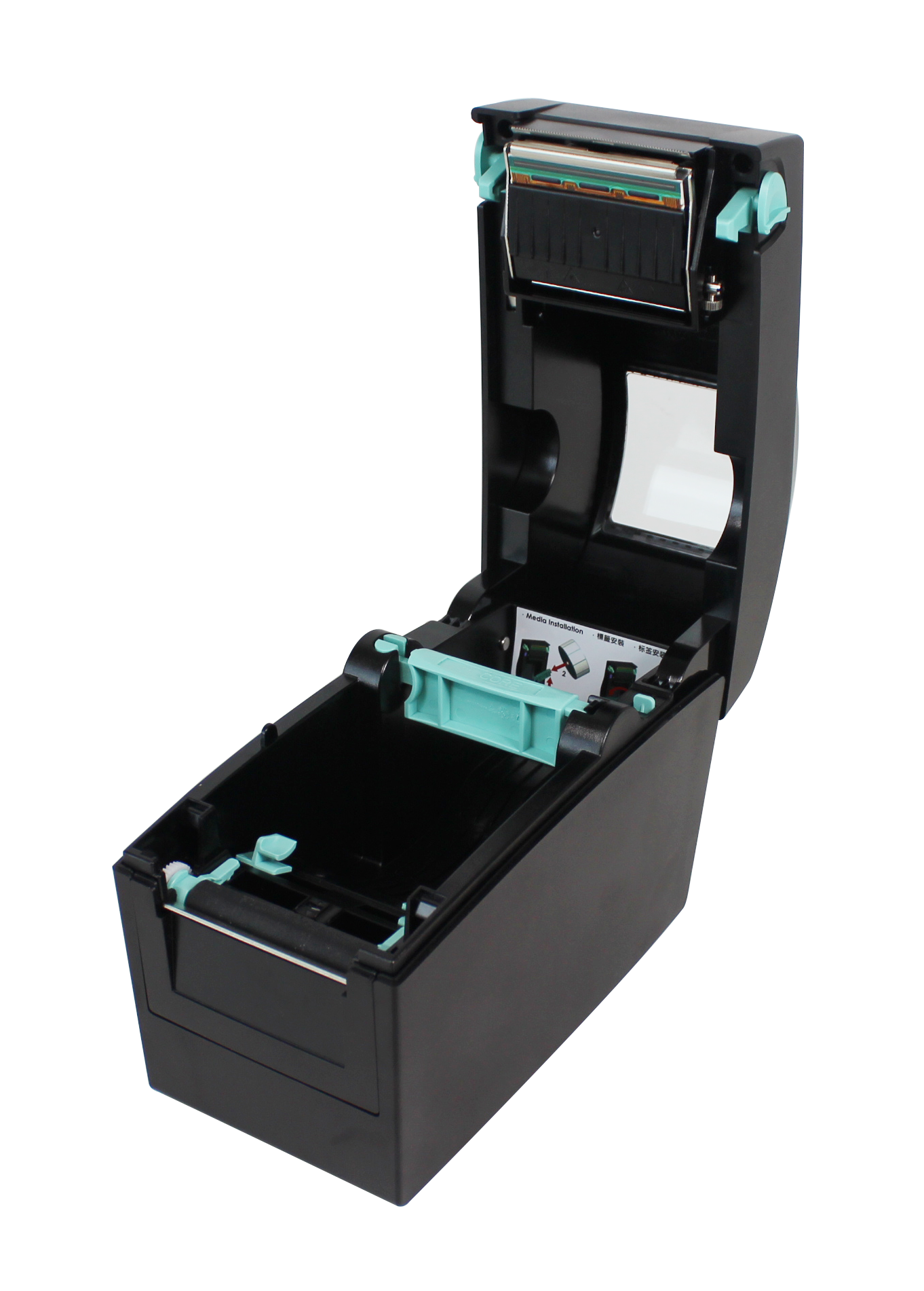

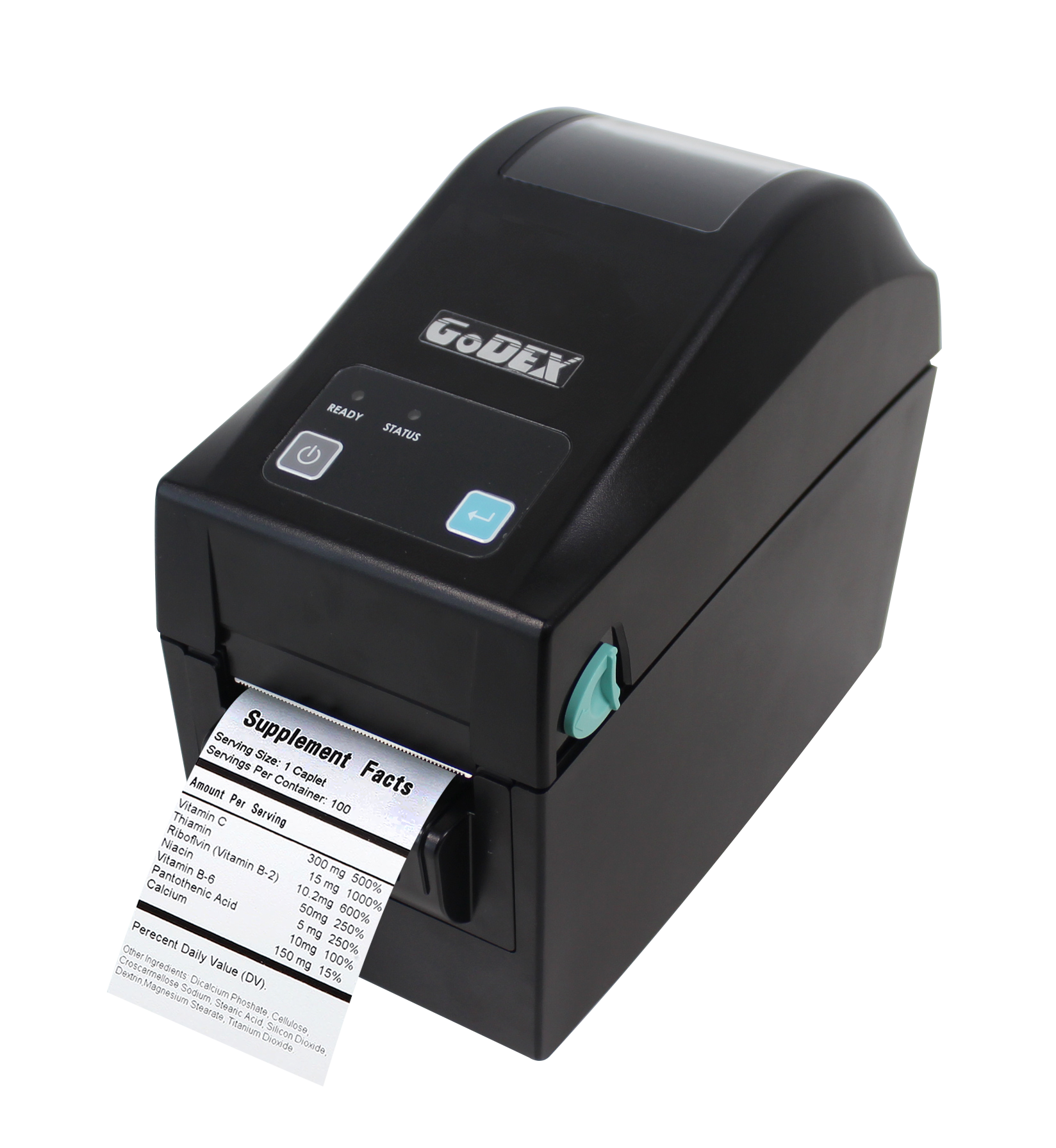

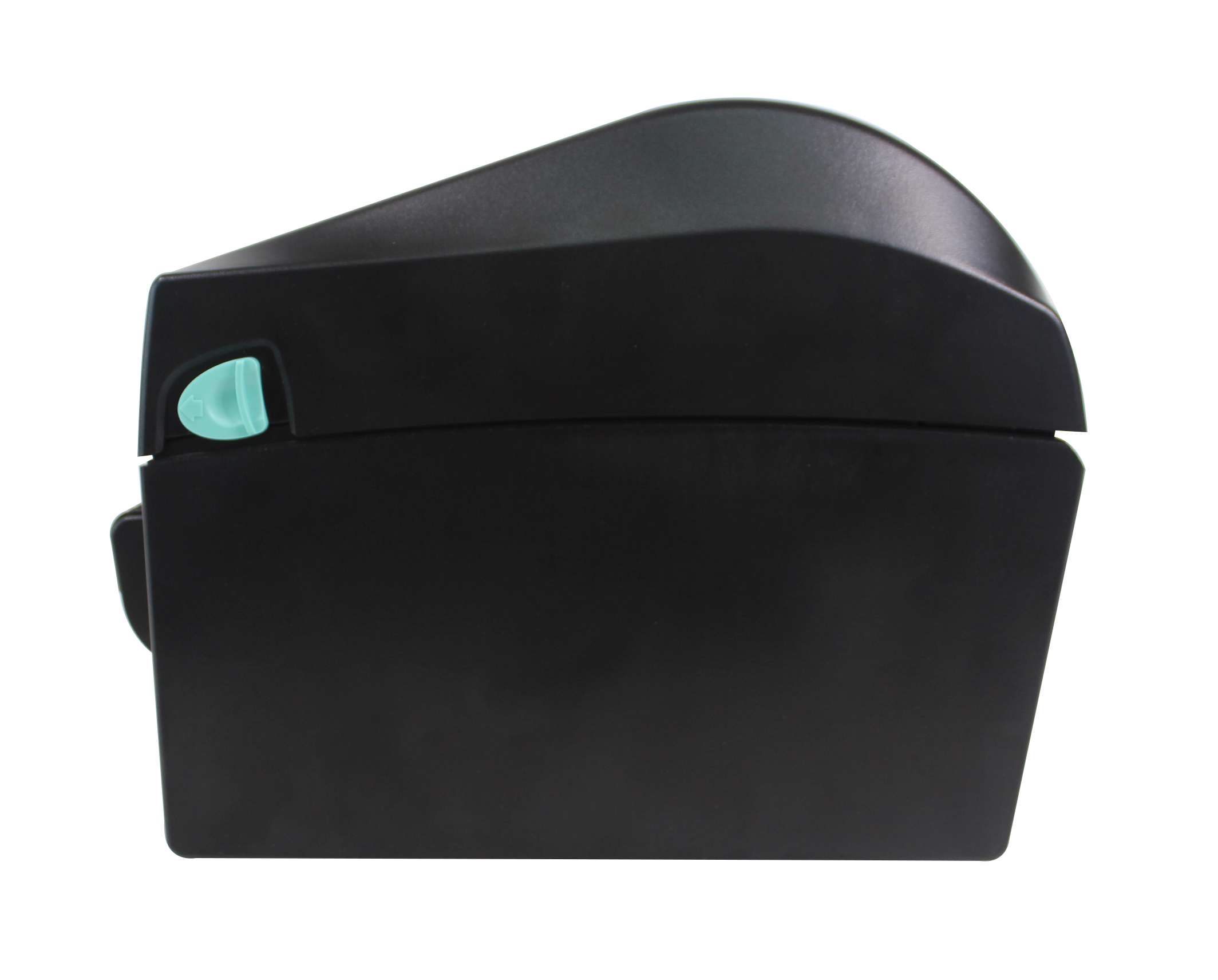

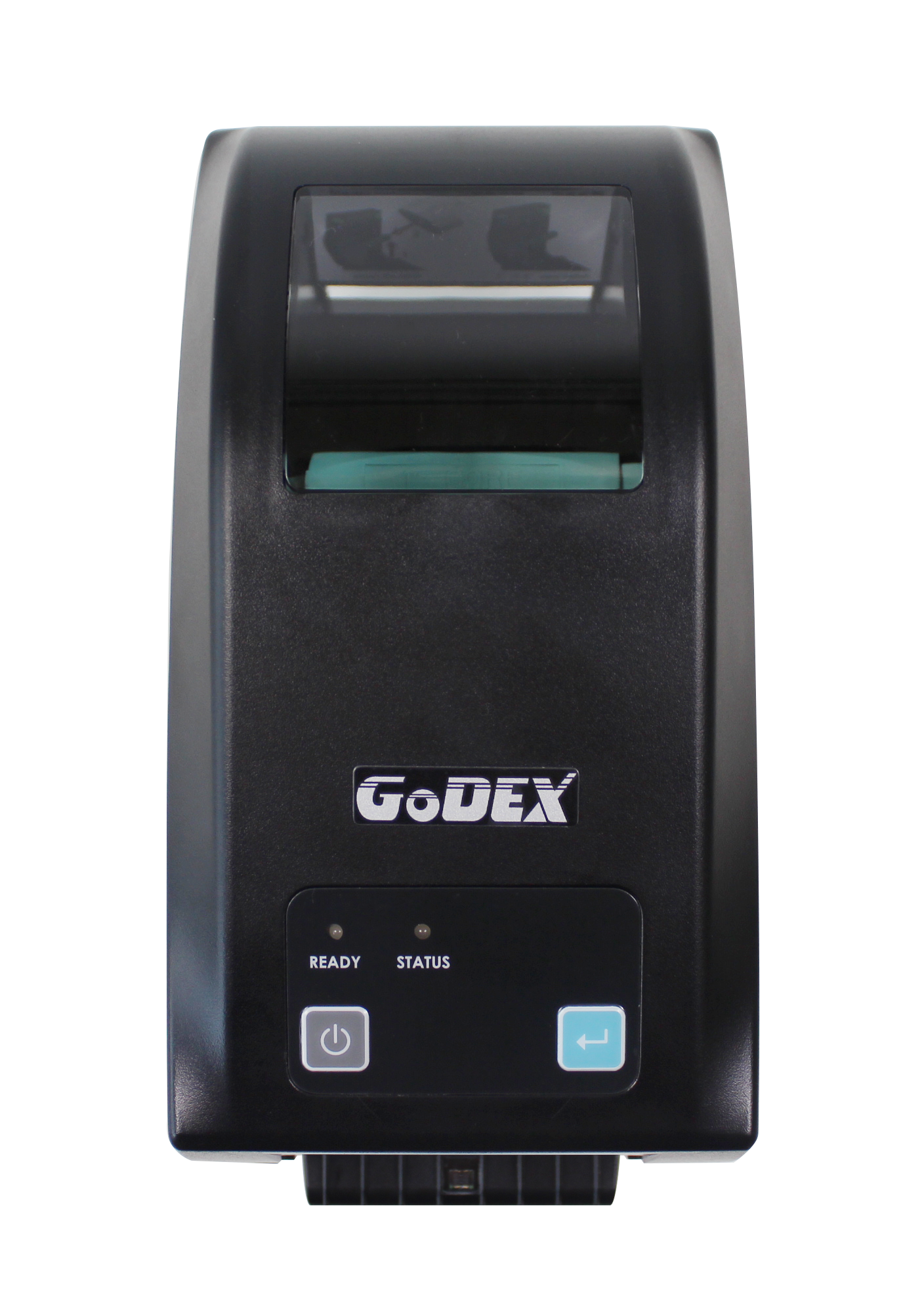

DT200

Small in Size. Powerful in Function!

The DT200 series is an ingenious design that brings several functions into one platform. It supports 203dpi or 300dpi printing resolution. A full line of optional accessories is available and the DT200L supports linerless media printing. All your needs can be satisfied with this series.

Supports 203 dpi / 300 dpi printing resolution
Small footprint with a wall-mountable design for space optimization
The innovative easy-to-use auto-calibration button facilitates media
detection and positioning
Adjustable TPH print line to optimize printability
Multiple connection interfaces for multiple applications
Optional wireless connectivity: Bluetooth or Wi-Fi module
Supports various types of media, including linerless media with the
DT200L Linerless models.
External media stand available to satisfy large printing projects
(not compatible with Linerless models)

To purchase GoDEX printers, Call us direct on 01903 896897

£230.53 ex VAT

Buy Now!

DT200 Spare Parts & Accessories

For pricing and more information on spare parts and accessories for the DT200 please call us on 01903 896897

Part Number	Description	Price (ex VAT)
021-105013-000	Godex - DT41 Printhead	£91.27
021-D20003-000	Godex - DT200(i)(L) Printhead - 200DPI	£75.13
GP-021-R23001-000	Godex - DT230/RT230(i)(L)(L+) Printhead - 300DPI	£100.76
GP-219-112240-002	Godex - DT2x Printhead - 203DPI	£75.13
GP-219-114240-002	Godex - 203DPI Printhead - RT7x0i(+)(PRO)/DT4x(PRO)/DT4L	£102.21
021-D20010-000	Godex - DT2x0(i) Platen Roller	£29.71
021-D20L01-000	Godex - DT2X0(i)L Linerless Platen Roller	£62.06
021-DT2010-000	Godex - DT2x Platen Roller	£25.26
021-DT4010-00A	Godex - DT4x Platen Roller	£27.09
021-DT4014-000	Godex - DT4L Platen Roller	£64.70
031-D20001-000	Godex - Guillotine Cutter Module DT2X0(i)	£118.66
031-D20002-000	Godex - Real Time Clock DT2X0(i)(L)	£24.66
031-D20003-000	Godex - Wifi Module DT2X0(i)(L)	£162.41
031-D20004-000	Godex - Bluetooth Module 2.1 DT2x0(i)(L); Win/Android	£103.77
031-D20005-000	Godex - Bluetooth Module 4.0 DT2x0(i)(L); Win/Android/iOS	£138.99
031-D20L01-000	Godex - DT2x0(i)L Linerless Cutter Module	£210.87
031-G50003-000	Godex - External Label Unwind Stand 2"-4" - GODEX BRANDED	£33.44
031-W04001-000	Godex - WiFi/BT Module DT2x0(i)+/RT7x0i+/RT8x3i+/GE3x0/ G5x0+/RT200(i)/ZX1x00(X)i+/GX4x00i	£110.47
GP-031-DT2251-001	Godex - 2" Stripper Module Black (DTxX)	£27.94
GP-031-DT4251-001	Godex - 4" Stripper Module (PRO/DT41/DT4C)	£31.51
GP-031-DT4255-001	Godex - 4" Guillotine Cutter Module (PRO)	£162.41
GP-T10	Godex - GP-T10 External Label Rewinder - 4" Wide	£229.54
GW1Y-NC-DT-Z1	Godex - Onsite NonComp Desktop Warranty Upgrade 1Y; Printhead/Platen Excl	£181.43
GW2Y-NC-DT-Z1	Godex - Onsite NonComp Desktop Warranty Upgrade 2Y; Printhead/Platen Excl	£335.71
GW3Y-NC-DT-Z1	Godex - Onsite NonComp Desktop Warranty Upgrade 3Y; Printhead/Platen Excl	£652.86

DT200 Specifications

Print Method	Direct Thermal
Resolution	203 dpi (8 dots/mm) / 300 dpi (12 dots/mm)
Print Speed	7 IPS (178 mm/s) / 5 IPS (127 mm/s)
Print Width	2.12” (54 mm) / 2.24” (57 mm)
Print Length	Min. 0.16” (4 mm) ;Max. 68” (1727 mm) / Min. 0.16” (4 mm) ;Max. 30“(762 mm)
Processor	32 Bit RISC CPU
Memory	Flash: 128 MB (60 MB for user storage) SDRAM: 32 MB
Interfaces	• USB 2.0 • Serial port: RS-232 (DB-9) • Ethernet 10/100 Mbps
Ribbon	N/A
Control Panel	• Two LEDs : Ready, Status • Power on / off button • Calibration button • Control key : FEED

Application
