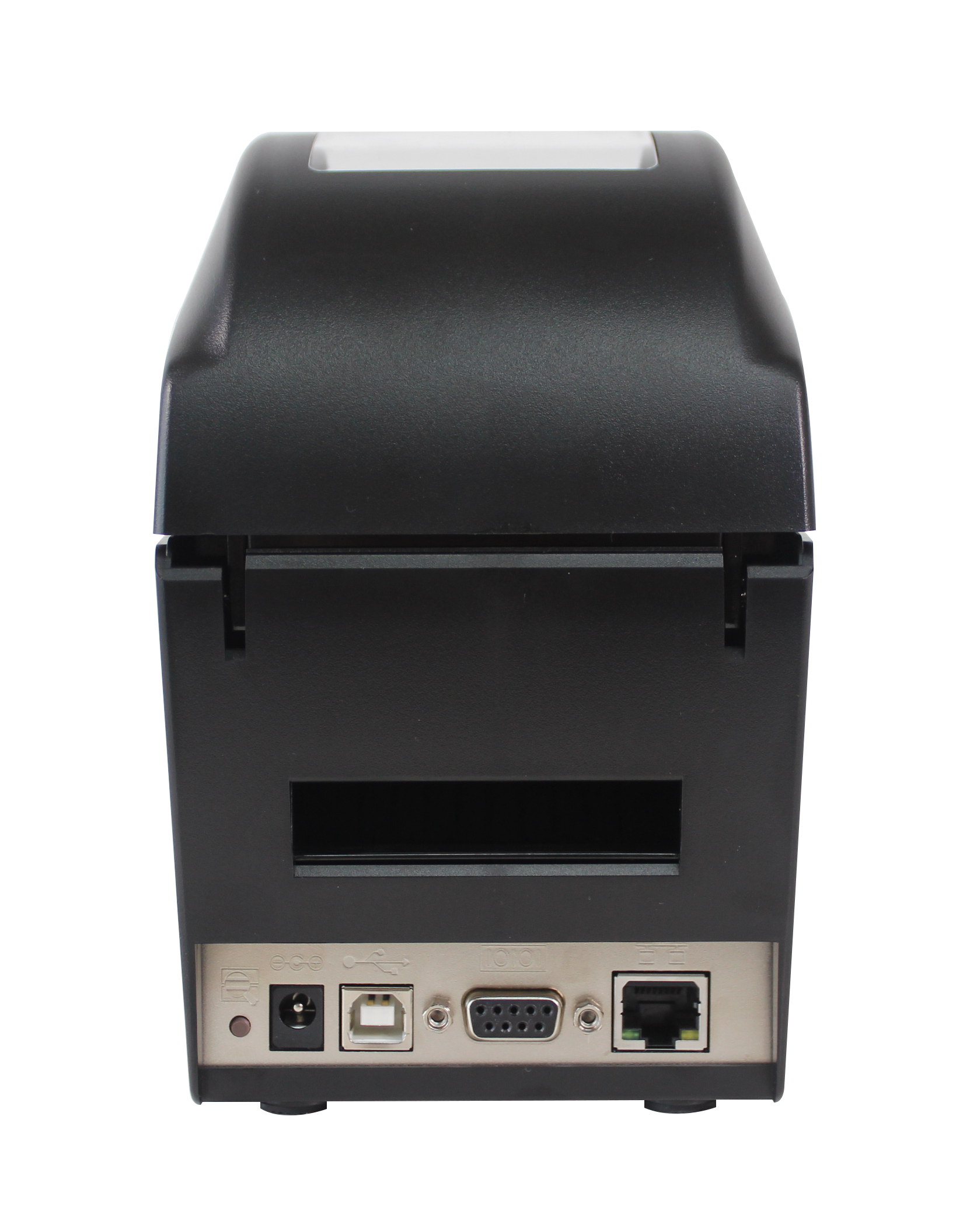

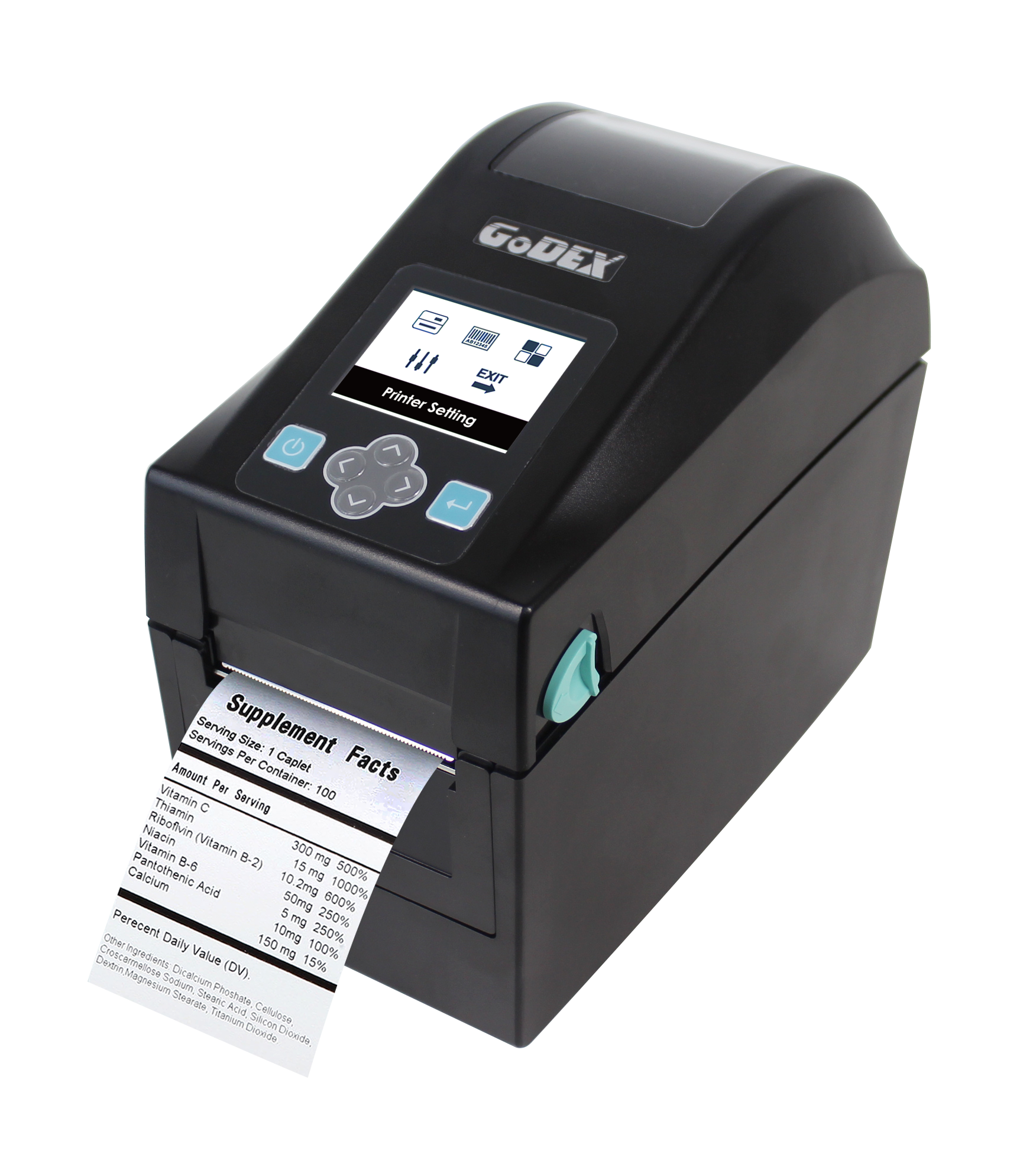

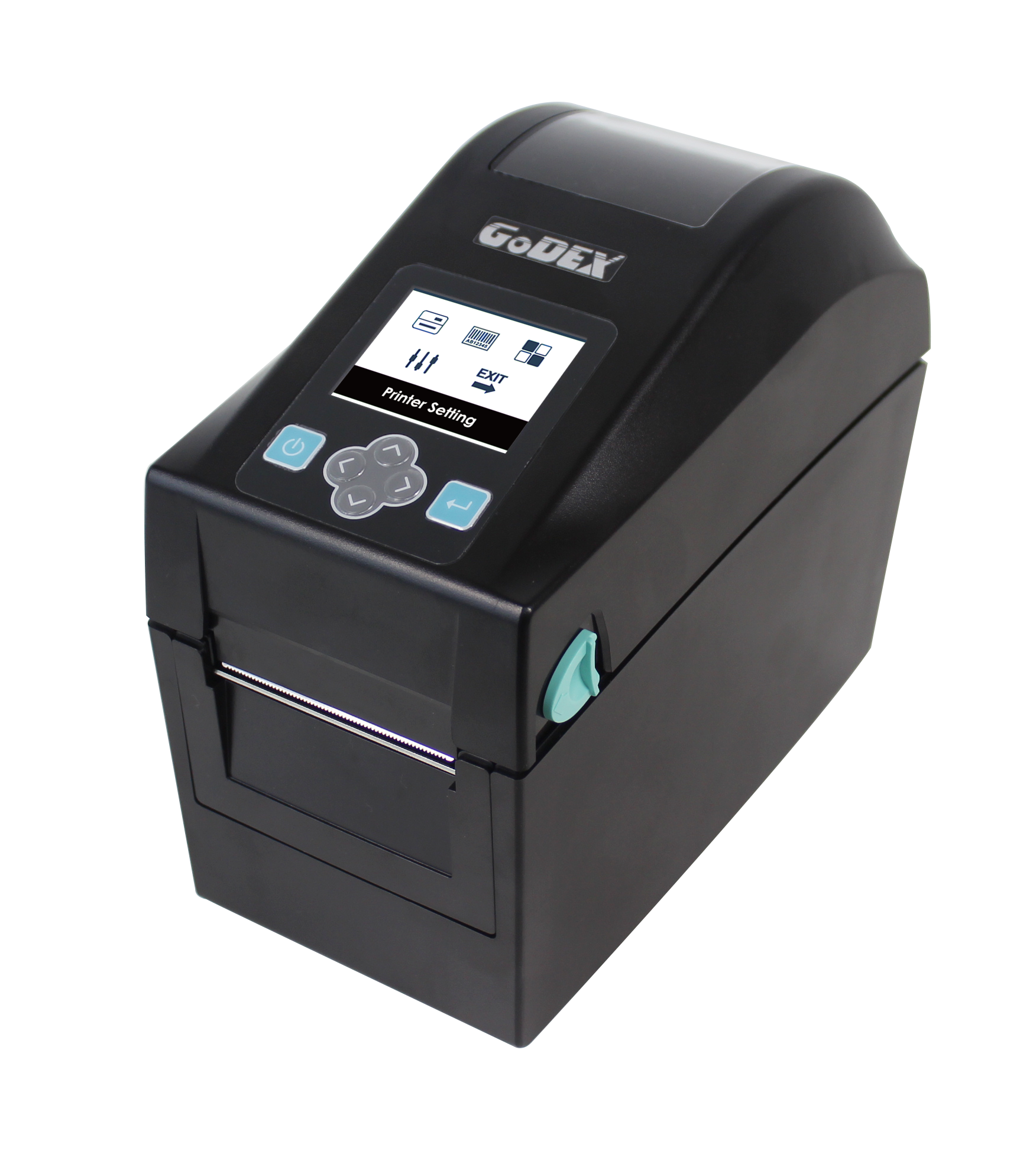

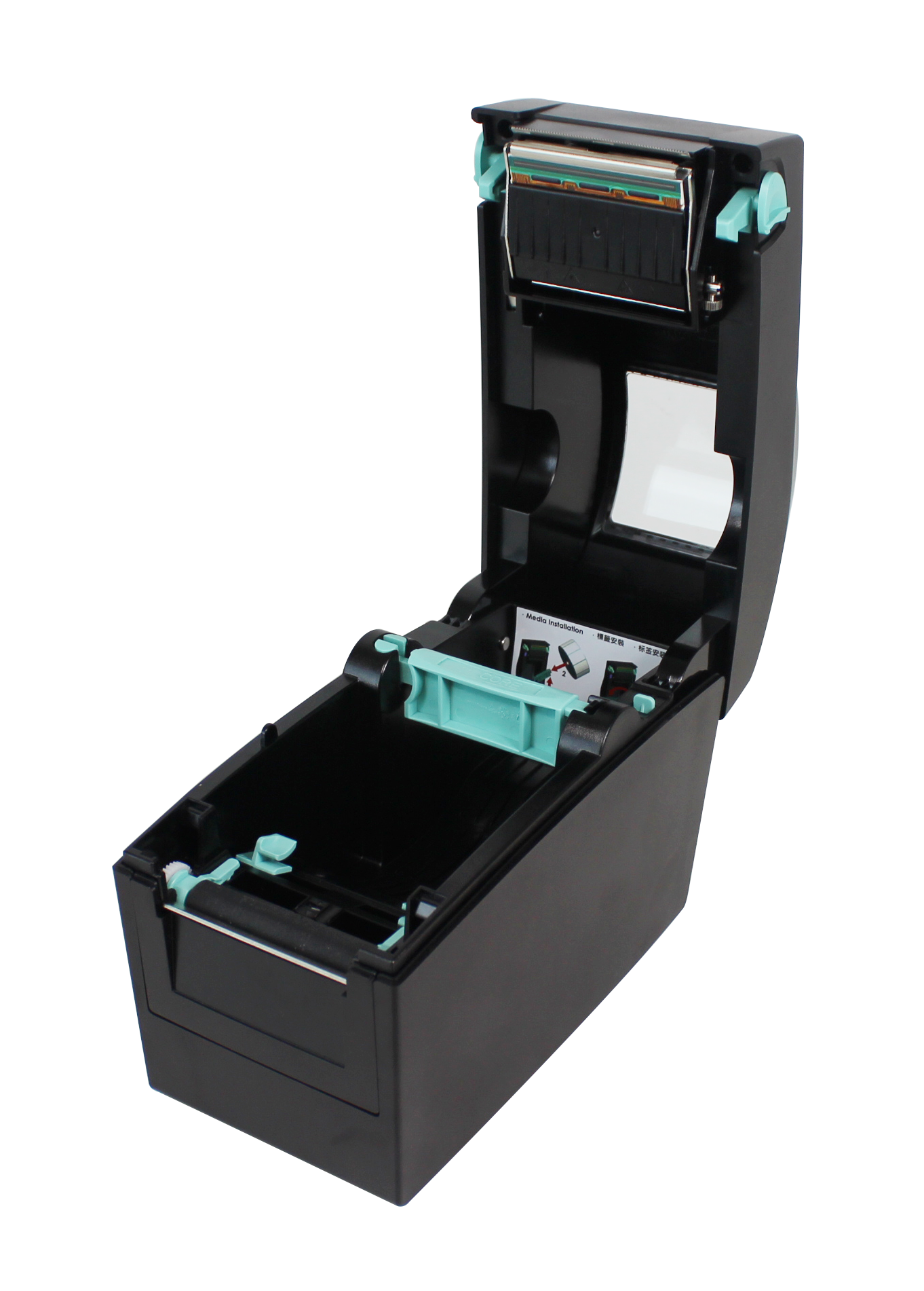

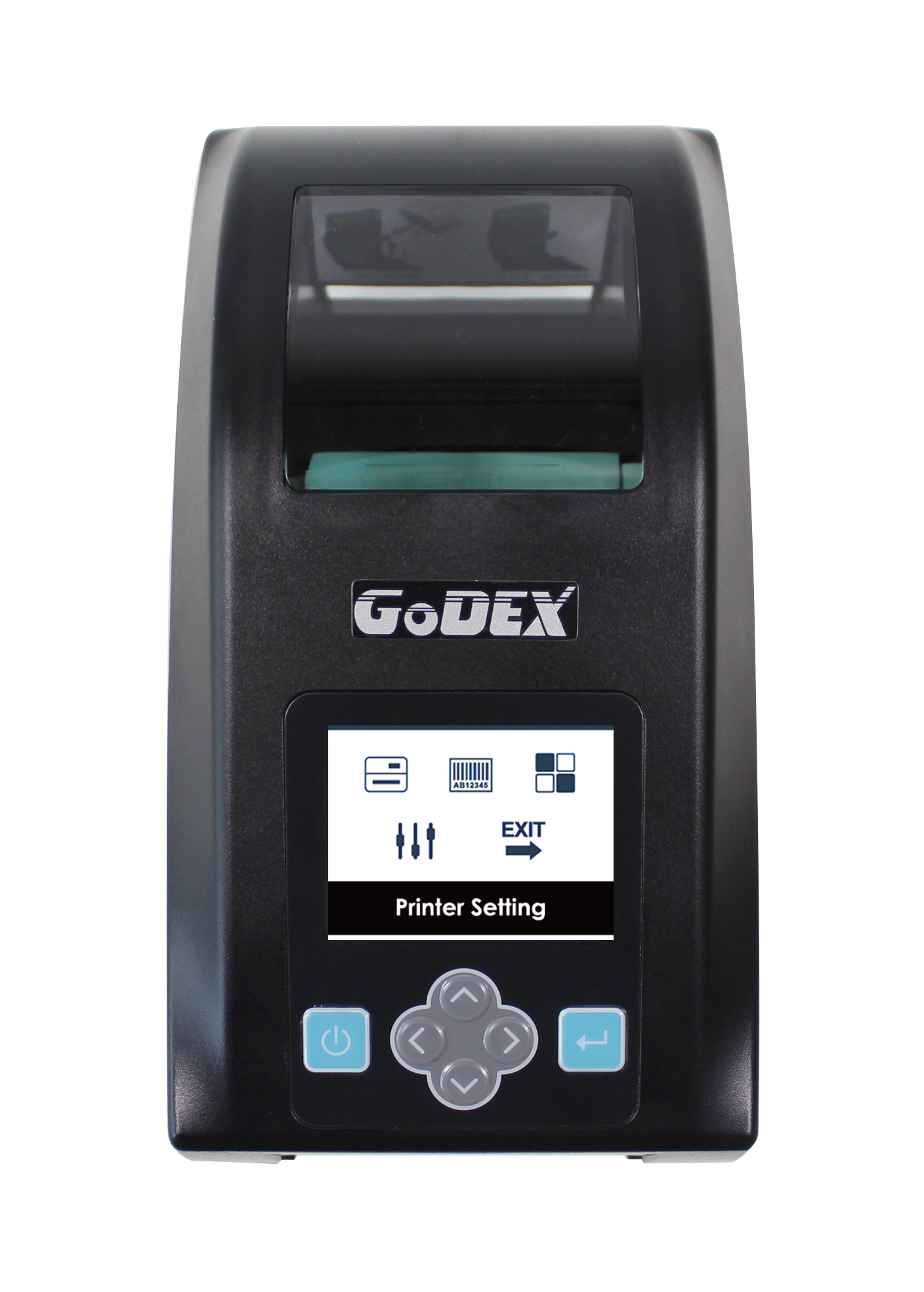

DT200iL

Linerless Printers Series • Small in size • Powerful in function

The DT200iL series supports linerless media printing with 203dpi or 300dpi printing resolution. A full line of optional accessories is available.

Supports 203 dpi / 300 dpi printing resolution
Small footprint with a wall-mountable design for space optimization
The innovative easy-to-use auto-calibration button facilitates media
detection and positioning.
Adjustable TPH print line to optimize printability
Multiple connection interfaces for multiple applications
Optional wireless connectivity: Bluetooth or Wi-Fi module
Supports linerless media
USB host for memory extension and standalone operation
2.4” color LCD for easy and intuitive operation

To purchase GoDEX printers, Call us direct on 01903 896897

£354.00 ex VAT

Buy Now!

DT200iL Spare Parts & Accessories

For pricing and more information on spare parts and accessories for the DT200iL please call us on 01903 896897

Part Number	Description	Price (ex VAT)
021-105013-000	Godex - DT41 Printhead	£91.27
021-D20003-000	Godex - DT200(i)(L) Printhead - 200DPI	£75.13
GP-021-R23001-000	Godex - DT230/RT230(i)(L)(L+) Printhead - 300DPI	£100.76
GP-219-112240-002	Godex - DT2x Printhead - 203DPI	£75.13
GP-219-114240-002	Godex - 203DPI Printhead - RT7x0i(+)(PRO)/DT4x(PRO)/DT4L	£102.21
021-D20010-000	Godex - DT2x0(i) Platen Roller	£29.71
021-D20L01-000	Godex - DT2X0(i)L Linerless Platen Roller	£62.06
021-DT2010-000	Godex - DT2x Platen Roller	£25.26
021-DT4010-00A	Godex - DT4x Platen Roller	£27.09
021-DT4014-000	Godex - DT4L Platen Roller	£64.70
031-D20001-000	Godex - Guillotine Cutter Module DT2X0(i)	£118.66
031-D20002-000	Godex - Real Time Clock DT2X0(i)(L)	£24.66
031-D20003-000	Godex - Wifi Module DT2X0(i)(L)	£162.41
031-D20004-000	Godex - Bluetooth Module 2.1 DT2x0(i)(L); Win/Android	£103.77
031-D20005-000	Godex - Bluetooth Module 4.0 DT2x0(i)(L); Win/Android/iOS	£138.99
031-D20L01-000	Godex - DT2x0(i)L Linerless Cutter Module	£210.87
031-G50003-000	Godex - External Label Unwind Stand 2"-4" - GODEX BRANDED	£33.44
031-W04001-000	Godex - WiFi/BT Module DT2x0(i)+/RT7x0i+/RT8x3i+/GE3x0/ G5x0+/RT200(i)/ZX1x00(X)i+/GX4x00i	£110.47
GP-031-DT2251-001	Godex - 2" Stripper Module Black (DTxX)	£27.94
GP-031-DT4251-001	Godex - 4" Stripper Module (PRO/DT41/DT4C)	£31.51
GP-031-DT4255-001	Godex - 4" Guillotine Cutter Module (PRO)	£162.41
GP-T10	Godex - GP-T10 External Label Rewinder - 4" Wide	£229.54
GW1Y-NC-DT-Z1	Godex - Onsite NonComp Desktop Warranty Upgrade 1Y; Printhead/Platen Excl	£181.43
GW2Y-NC-DT-Z1	Godex - Onsite NonComp Desktop Warranty Upgrade 2Y; Printhead/Platen Excl	£335.71
GW3Y-NC-DT-Z1	Godex - Onsite NonComp Desktop Warranty Upgrade 3Y; Printhead/Platen Excl	£652.86

DT200iL Specifications

Print Method	Direct Thermal
Resolution	203 dpi (8 dots/mm) / 300 dpi (12 dots/mm)
Print Speed	6 IPS (152 mm/s) / 4 IPS (102 mm/s)
Print Width	2.12” (54 mm) / 2.24” (57 mm)
Print Length	Min. 0.98” (25 mm)**; Max. 4.72” (120 mm)
Processor	32 Bit RISC CPU
Memory	128 MB Flash (60 MB for user storage); SDRAM : 32 MB
Interfaces	• USB 2.0 (Type B) • Serial port (RS-232) • Ethernet 10/100 Mbps • USB Host (A-Type)
Ribbon	N/A
Control Panel	Color TFT LCD with navigation button • Power on/off button • Calibration button • Control key: FEED
